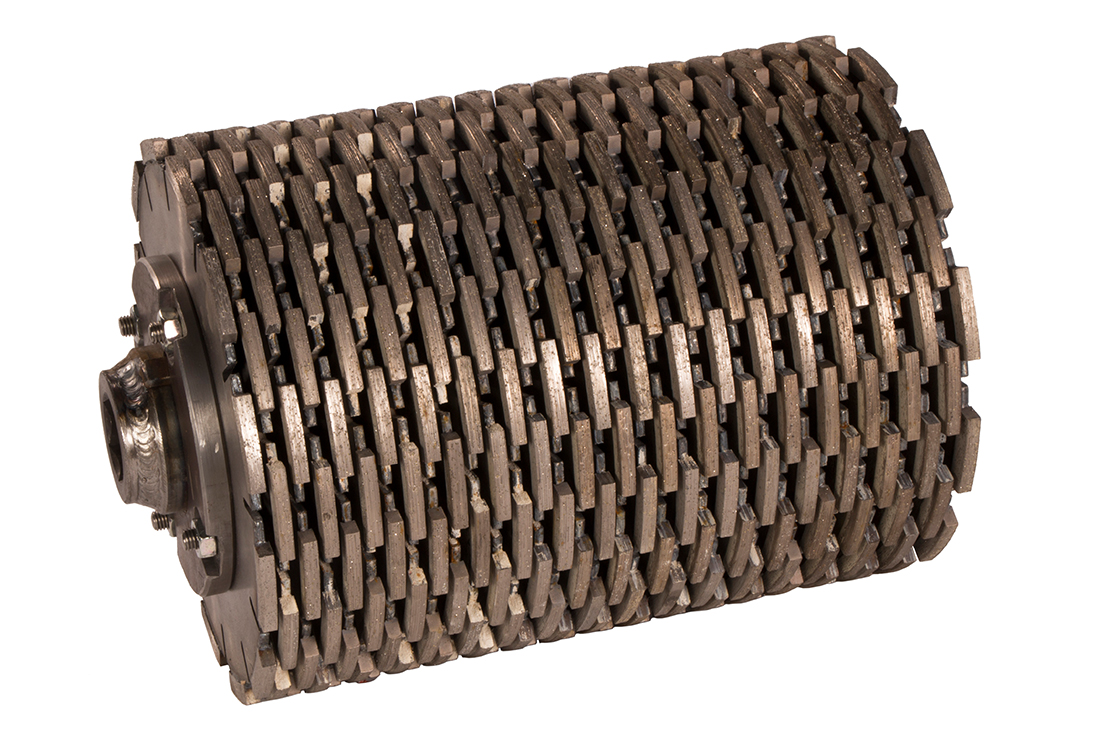

TR 330 PLANING DRUM ASSEMBLY

  • Create a completely flat and stable flooring surface
  • Remove concrete on all uneven flooring conditions
  • Level exposed aggregate
  • Prep floors for Mini Groove® or Deep Groove® cutting
  • Achieve results efficiently

GROOVING DRUM FEATURES COMPARISON


APPLICATIONS DEEP GROOVE® MINI GROOVE® 20 MINI GROOVE® 26 PLANING
Blade requirements to achieve grooving pattern 4 GROOVES > 12  BLADES 20 GROOVES > 20 BLADES 26 GROOVES > 26 BLADES 35 GROOVES > 35 BLADES
NEW concrete floors: alleys & crossovers YES NO NO NO
Reconditioning crossovers YES OPTIONAL YES NO
Resurface flat concrete floors per conditions below •
• Little or no existing groove YES NO NO NO
• Narrow grooves // less than .75in / 19 mm OPTIONAL YES YES NO
• Wide spaced groove // greater than 2.50 in / 64 cm NO YES YES NO
• V-groove NO NO YES OPTIONAL
• Diagonal grooves NO NO YES OPTIONAL
Resurface cobblestone concrete floors with shallow crown NO NO YES YES
Resurface cobblestone concrete floors with high crown NO NO NO YES
Resurface uneven or unstable concrete floors NO NO NO YES
Resurface flat concrete floors with too many existing grooves NO NO YES YES
Ineffective grooves (too narrow, too far apart, too shallow) NO NO YES - BETWEEN GROOVES OPTIONAL
Slatted floors NO OPTIONAL YES NO
Rough or pitted concrete floors NO NO NO YES
